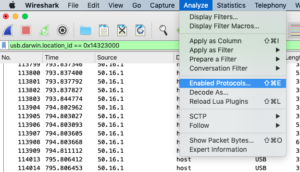

In some situations it might be useful to capture the signals in a more direct way, for example if the USB signals are routed on a PCB only. This approach has been implemented using a BeagleBoard-xM. >500$) dedicated appliances for USB sniffing.īb_usb_sniffer - Using a BeagleBoard-xM as MITMĪnother interesting way is to use an embedded Linux computer between the device and the host. Wireshark supports dissecting USBPcap capture files since version 1.10.Įllisys and ITIC offer (quite expensive, i.e. On Windows hosts one can use USBPcap to capture USB traffic natively. There is a ruby script that converts this to Wireshark's pcap format. vmx file while the VM is stopped and add the following options:Īfter powering on or resuming the VM, you should start to see USBIO log lines in vmware.log. VMware supports logging tunneled USB traffic on its own.Ī detailed Howto can be found at the tutorial page of vusb-analyzer.Įssentially one has to edit the. Wget "$.vbox-extpack"Īfter installation one needs to activate the USB controller and USB 2.0 separately in the properties of the virtual machine. Vb_version=$(dpkg -l virtualbox* | grep "ii.*virtualbox-" | egrep -o "\.\.+") The expansion pack is version-dependent and can be installed with the "script" below or manually by downloading it from Oracle's download page and installing it in the GUI under File/Preferences/Extensions. Sudo su -c "echo deb precise contrib > /etc/apt//virtualbox.list" For Ubuntu precise one can easily install Oracle's Virtualbox like this:
Alternatively one can try to use the Windows approach explained below with USBPcap to capture the traffic inside the guest OS.įor USB 2.0 support one needs to use Oracle's expansion pack hence Oracle's VirtualBox. The only difference to the native usbmon sniffing above is that the virtual machine must support forwarding USB ports and traffic into the virtualized operating system in a way that usbmon can cope with. Using usbmon to capture the guest OS traffic Most probably the proprietary device comes with a proprietary application running on a proprietary OS like Windows or OSX.īy using a virtual machine we can nevertheless do the capturing and dissecting in any host OS. Then you should be able to select a USB bus (sic!) number in Wireshark (if it runs as root).
Usbmon - The Linux way Capturing native Linux applicationsīe sure to load the usbmon kernel module with modprobe usbmon. 4.2 bb_usb_sniffer - Using a BeagleBoard-xM as MITM.2.1 Using usbmon to capture the guest OS traffic.1.1 Capturing native Linux applications.
